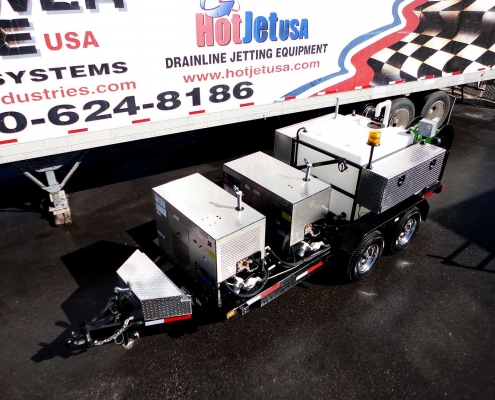

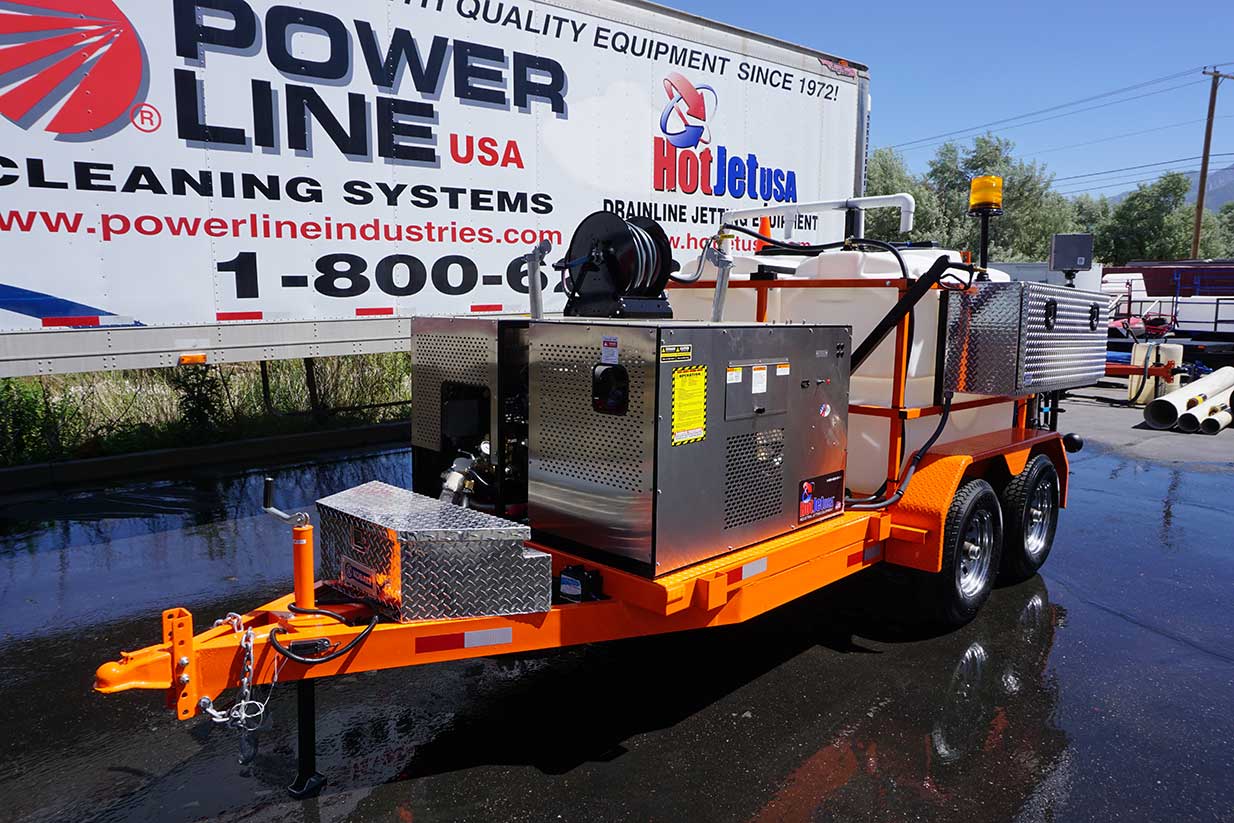

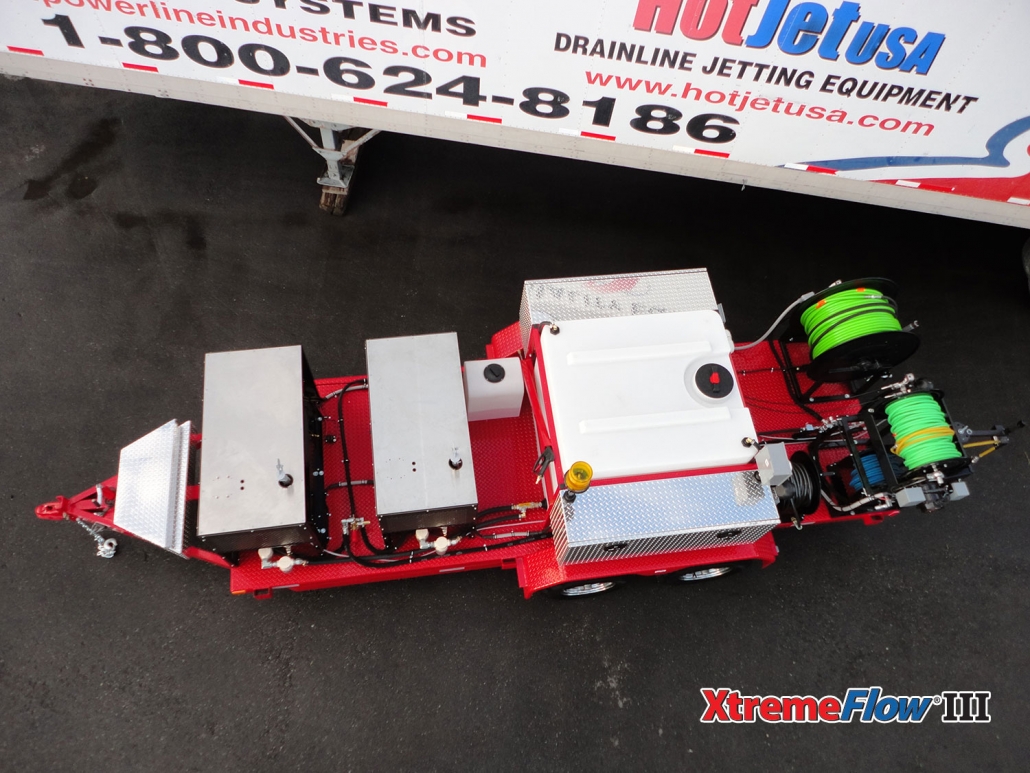

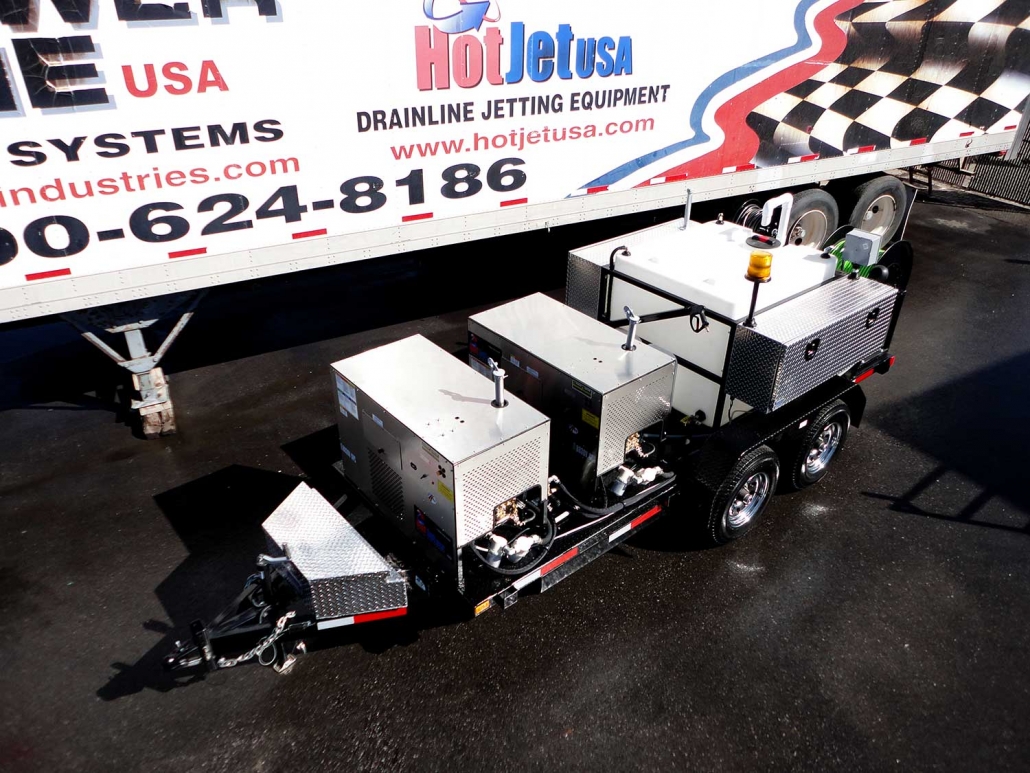

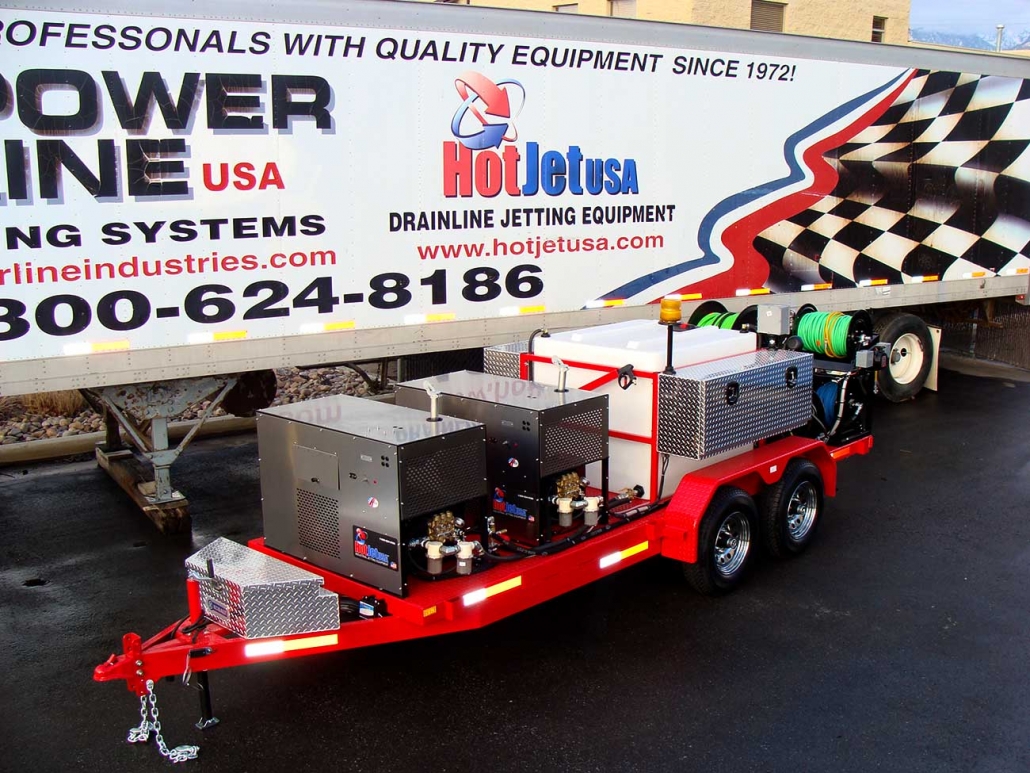

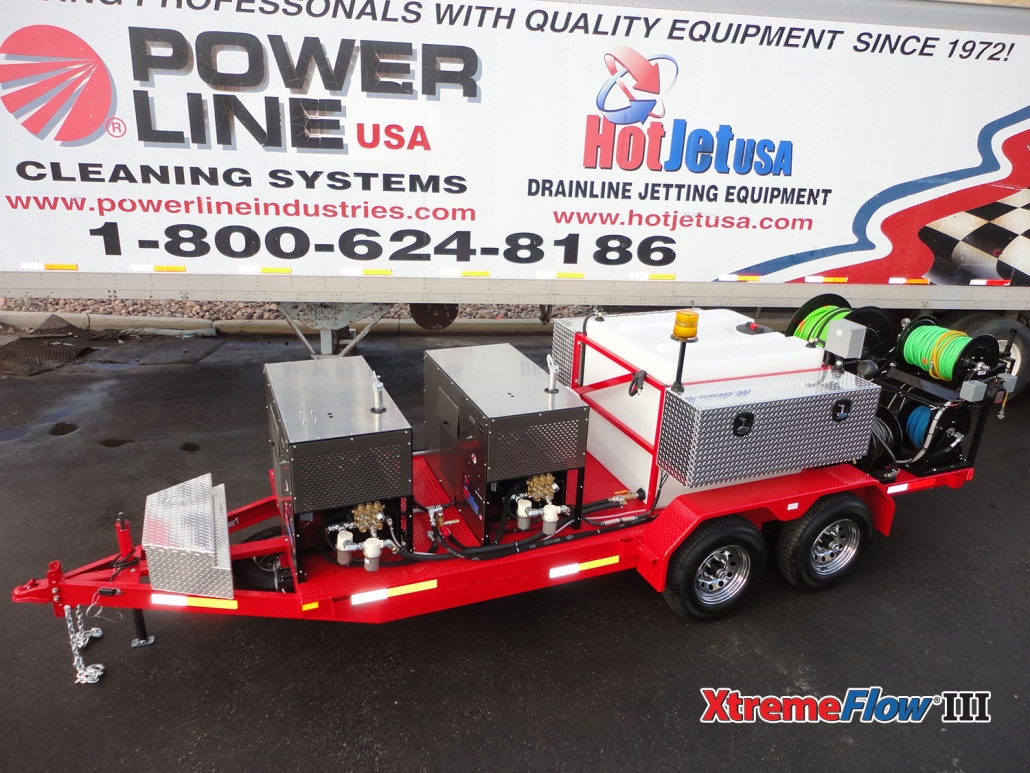

Trailer Mounted Cold Water Sewer & Drain Line Jetters – Dual Engine Cold Water

PUMP

• 2 – General Premium Emperor Series Pumps – TSF Series
• Triple Power V-Belt Driven
• Dual Safety Adjustable Blow Off Valves and Pump Saver System
• Dual Hose Pulsation Controls

MOTOR DESCRIPTION

• 2 – 35HP Vanguard Gas Engines
• Low Engine Oil/High Temperature Auto Shutdown System
• 14 Gallon Fuel Tanks
• Rear Throttle Control

HOSE & HOSE REELS

• Large Variable Speed Hose Reel with 500’ of 1/2” Jetting Hose Rated @ 16,000 PSI Burst with 120° Thumb Control Guide Arm
• Mid-Sized Variable Hose Reel with 300’ of 3/8” Jetting hose rated @ 12,000 PSI Burst with 120° Thumb Control Guide Arm
• Small Manual Hose Reel with 100’ of 3/8” Steel Braided Hose for Power Washing or to run the lateral system

NOZZLES

• 1/2” – Lazer, Ram
• 3/8” – Lazer, Ram, Spinner and De-Greaser / De-Icer
• Power Wash Nozzles Included

GENERAL SPECIFICATIONS

• 330 Gallon Water Capacity
• Molded HDP Water Tank(s)
• Low Water “Shut Off” Feature
• 2” x 36” Tiger Tail Hose Protector
• Adjustable Pressure Relief/Control Valve(s)
• Rear LED Lighting
• 2” Fast Fill

UPGRADES AVAILABLE

• Portable Reel with 100’ 1/4” Jetting Hose
• Solid State Remote Control
• 12 Volt Rear Power Connection for Spot Light or Camera
• HD Lockable Side Tool Boxes
• Customized Signage
• Warthog Nozzles
• Hot Water Available
• 660 Gallon Water Capacity with 14,000lb rated trailer

TRAILER DESCRIPTION

• Full Premium Powder Coat
• Rugged, Specially Engineered Trailer to Haul the Equipment and Water Load
• Leaf Spring Axles Cushion and Distribute the Weight for Easy Towing
• 5’x16’ Tandem Axle “Super Heavy Duty” trailer power coated paint and a heavy-duty jack
• 10k rated trailer – 2 x 5K axels
• Dual Axle Brake – DOT Legal in all 50 States

OVERALL DIMENSIONS

• Overall Length 18’ 6” inc. hitch
• Deck Length 14’
• Height 7’ with safety light
• Overall Deck Width 7’
• Weight 3,680 lbs.
• Weight (Full Load) 7,260 lbs.
